Specifications

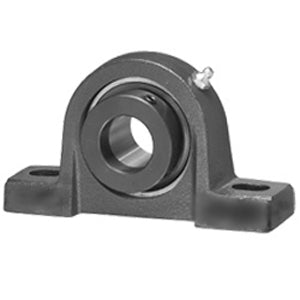

| title | NAPL 210 32 |
| price | $ 61.55 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI BEARINGS |
| Weight / kgm | 3.175 |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 7 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Low Base |
| Relubricatable | Yes |
| Global Part Number GPN | 519058 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.469 Inch | 62.7 Millimeter |
| Actual Bolt Center to Center | 6.3 Inch | 159Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.188 Inch | 55.575 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | NA210-32 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
