Specifications

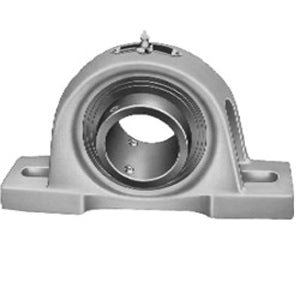

| title | NPD-32 |
| price | $ 375.27 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 10 |
| Other Features | Single Row | Standard Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 6671 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.625 Inch | 66.675 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.5 Inch | 165.1Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 7 Inch | 177.8Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-2D |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
