Specifications

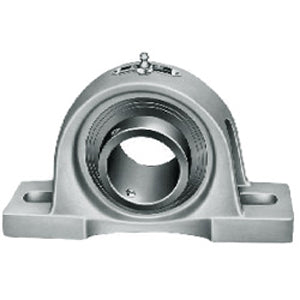

| title | NPL-10 RM |
| price | $ 88.18 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 1.7 |
| Other Features | Single Row | Standard Duty | Low Base | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515289 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.219 Inch | 30.963 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 3.6 Inch | 92 Millimeter |
| Bolt Spacing Minimum | 3.375 Inch | 85.725Millimeter |
| Base to Center Height | 1.063 Inch | 27 Millimeter |
| Bolt Spacing Maximum | 4.125 Inch | 104.775Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-010-RM |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
