Specifications

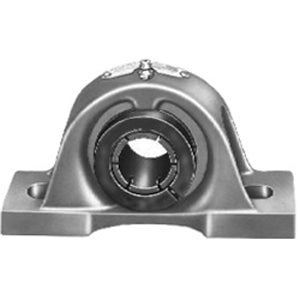

| title | NPL-206TM |
| price | $ 167.71 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 3.8 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515245 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.575 Inch | 40 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.9 Inch | 123.5 Millimeter |
| Bolt Spacing Minimum | 4.449 Inch | 113Millimeter |
| Base to Center Height | 1.563 Inch | 39.7 Millimeter |
| Bolt Spacing Maximum | 5.079 Inch | 129Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 5206TM |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 10 Millimeter |
| Housing Configuration | 1 Piece Solid |
