Specifications
| title | NPL-39C |
| price | $ 337.96 / each |

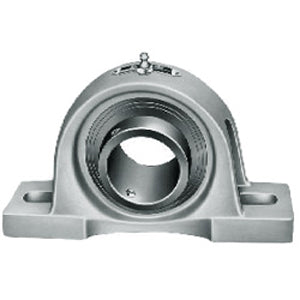

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 13.5 |
| Other Features | Single Row | Standard Duty | Low Base | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6859 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.09 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.5 Inch | 190 Millimeter |
| Bolt Spacing Minimum | 6.875 Inch | 174.625Millimeter |
| Base to Center Height | 2.688 Inch | 68.275 Millimeter |
| Bolt Spacing Maximum | 7.625 Inch | 193.675Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-27C |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
