Specifications
| title | P2B-C-215E |
| price | $ 3,014.11 / each |

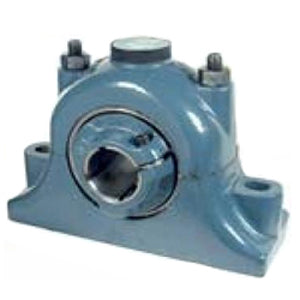

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 40.86 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 90 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 522599 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.5 Inch | 165.1 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.8 Inch | 300 Millimeter |
| Bolt Spacing Minimum | 11.125 Inch | 282.575Millimeter |
| Base to Center Height | 4.75 Inch | 120.65 Millimeter |
| Bolt Spacing Maximum | 12.375 Inch | 314.325Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | S1U-C-215 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Multi Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
