FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

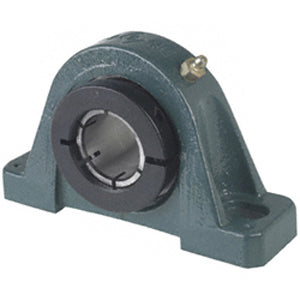

| title | P2B-DLAH-100 |
| price | $ 116.27 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.04 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 2.3 |
| Other Features | Single Row | Spherical | Normal Duty | Air Handling | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 522517 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.438 Inch | 36.525 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 3.688 Inch | 93.675Millimeter |
| Base to Center Height | 1.438 Inch | 36.525 Millimeter |
| Bolt Spacing Maximum | 4.5 Inch | 114.3Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-DL-100 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
