Specifications

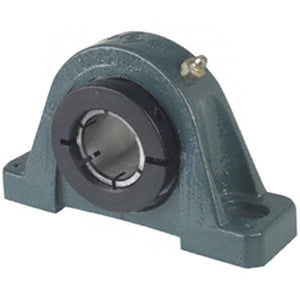

| title | P2B-DLAH-203 |
| price | $ 273.67 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 4.68 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 10.3 |
| Other Features | Single Row | Spherical | Normal Duty | Air Handling | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 522511 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.25 Inch | 57.15 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.9 Inch | 175.3 Millimeter |
| Bolt Spacing Minimum | 6.375 Inch | 161.925Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 7.438 Inch | 188.925Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-DL-203 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
