Specifications
| title | P2B-DLMAH-112 |
| price | $ 243.56 / each |

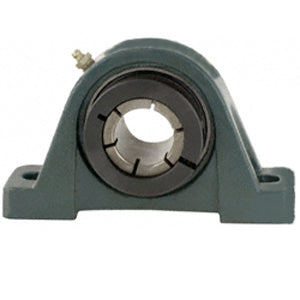

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 3.797 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 10.1 |
| Other Features | Single Row | Medium Duty | Air Handling | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 500271 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.094 Inch | 53.18 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 6 Inch | 152.4Millimeter |
| Base to Center Height | 2.313 Inch | 58.75 Millimeter |
| Bolt Spacing Maximum | 6.688 Inch | 169.875Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-DLM-112 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
