Specifications

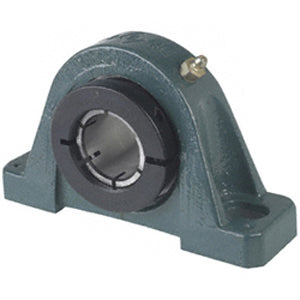

| title | P2B-DLU-103-FF-NL |
| price | $ 126.18 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.678 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 3.7 |
| Other Features | Single Row | Normal Duty | Wide Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 522433 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.563 Inch | 39.69 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.6 Inch | 118 Millimeter |
| Bolt Spacing Minimum | 4.25 Inch | 107.95Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 5 Inch | 127Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-DL-103 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
