FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

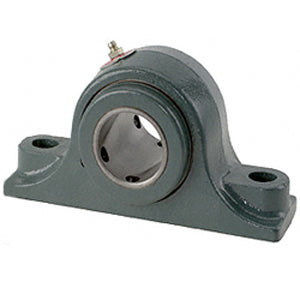

| title | P2B-E-035MR |
| price | $ 275.52 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.816 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 7 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 522429 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3 Inch | 76.2 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.7 Inch | 146 Millimeter |
| Bolt Spacing Minimum | 5.622 Inch | 142.8Millimeter |
| Base to Center Height | 1.874 Inch | 47.6 Millimeter |
| Bolt Spacing Maximum | 5.874 Inch | 149.2Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
