Specifications

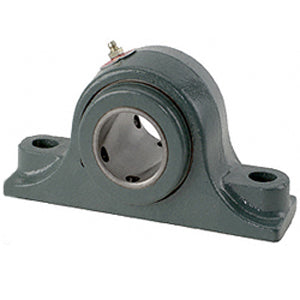

| title | P2B-E-303R |
| price | $ 1,137.87 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 21.79 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 48 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 522400 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5 Inch | 127 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11 Inch | 280 Millimeter |
| Bolt Spacing Minimum | 10.813 Inch | 274.65Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 11.188 Inch | 284.175Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
