Specifications

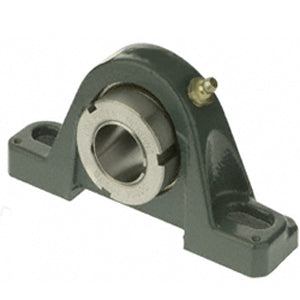

| title | P2B-GTAH-107 |
| price | $ 132.72 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.515 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 4.8 |
| Other Features | Single Row | Normal Duty | Air Handling | Wide Inner Race | Thin Wall |
| Relubricatable | Yes |
| Global Part Number GPN | 522361 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 1.625 Inch | 41.275 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5 Inch | 127 Millimeter |
| Bolt Spacing Minimum | 4.688 Inch | 119.075Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 5.438 Inch | 138.125Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-GT-107 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
