Specifications

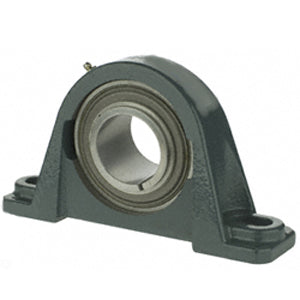

| title | P2B-GTMAH-300 |
| price | $ 583.25 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 7.552 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 25.4 |
| Other Features | Single Row | Medium Duty | Air Handling | Wide Inner Race | Thin Wall |
| Relubricatable | Yes |
| Global Part Number GPN | 500232 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 2.688 Inch | 68.275 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 9 Inch | 229 Millimeter |
| Bolt Spacing Minimum | 8.5 Inch | 215.9Millimeter |
| Base to Center Height | 3.5 Inch | 88.9 Millimeter |
| Bolt Spacing Maximum | 9.5 Inch | 241.3Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-GTM-300 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
