FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

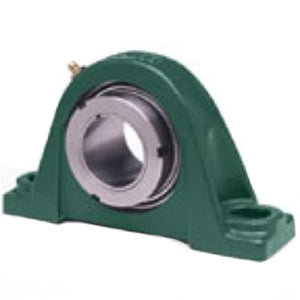

| title | P2B-GTU-103 |
| price | $ 102.94 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.256 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 3.7 |
| Other Features | Single Row | Normal Duty | High Base | Wide Inner Race | Thin Wall |
| Relubricatable | Yes |
| Global Part Number GPN | 522256 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 1.609 Inch | 40.869 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.6 Inch | 118 Millimeter |
| Bolt Spacing Minimum | 4.25 Inch | 107.95Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 5 Inch | 127Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-GT-103 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
