Specifications

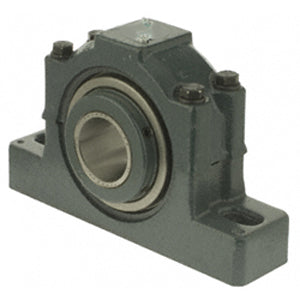

| title | P2B-K-208RE |
| price | $ 1,091.09 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 13.652 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 28 |
| Other Features | Double Row | Heavy Duty | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 522101 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.344 Inch | 84.938 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 9.7 Inch | 246.4 Millimeter |
| Bolt Spacing Minimum | 9.25 Inch | 234.95Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Bolt Spacing Maximum | 10.25 Inch | 260.35Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | S1U-K-208R |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
