Specifications

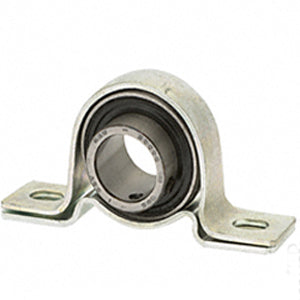

| title | P2B-SL-100 |
| price | $ 33.44 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.454 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 0.73 |
| Other Features | Single Row | Light Duty | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 521723 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.094 Inch | 27.8 Millimeter |
| Actual Bolt Center to Center | 3.4 Inch | 86Millimeter |
| Nominal Bolt Center to Center | 3.4 Inch | 86 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.125 Inch | 28.575 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-SL-100 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Stamped Steel |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
