FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
| title | P2B-UN2-107 |
| price | $ 616.73 / each |

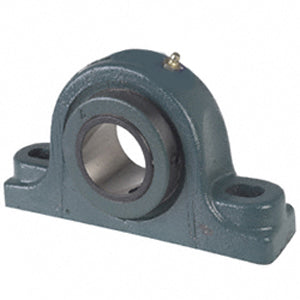

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 2.502 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 5.5 |
| Other Features | Double Row | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521501 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.688 Inch | 42.87 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.1 Inch | 130 Millimeter |
| Bolt Spacing Minimum | 4.688 Inch | 119.075Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 5.5 Inch | 139.7Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | BRG-UN2-107 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
