Specifications
| title | P2B-UN2-112 |
| price | $ 671.39 / each |

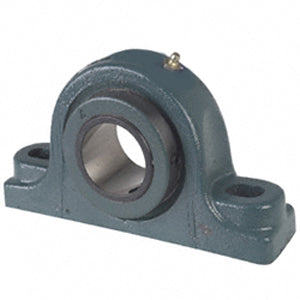

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 3.09 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 6.8 |
| Other Features | Double Row | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521495 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.906 Inch | 48.42 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.5 Inch | 140 Millimeter |
| Bolt Spacing Minimum | 5.188 Inch | 131.775Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 5.875 Inch | 149.225Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | BRG-UN2-112 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
