FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

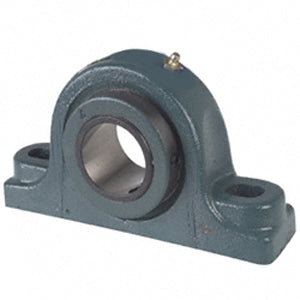

| title | P2B-UN2-115 |
| price | $ 764.24 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 3.632 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 8 |
| Other Features | Double Row | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521493 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.906 Inch | 48.42 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 5.938 Inch | 150.825Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 6.688 Inch | 169.875Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | BRG-UN2-115 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
