Specifications

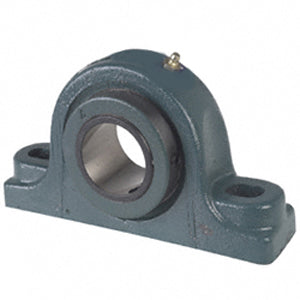

title | P2B-UN2-300 |
price | $ 1,478.47 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
Weight / kgm | 8.22 |
Inch - Metric | Inch |
Brand | DODGE |
Weight / LBS | 18.1 |
Other Features | Double Row | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 521478 |
Mounting Method | Concentric Collar |
Length Thru Bore | 2.453 Inch | 62.3 Millimeter |
Actual Bolt Center to Center | 0 Inch | 0Millimeter |
Nominal Bolt Center to Center | 8.1 Inch | 206.4 Millimeter |
Bolt Spacing Minimum | 7.813 Inch | 198.44Millimeter |
Base to Center Height | 3.25 Inch | 82.55 Millimeter |
Bolt Spacing Maximum | 8.438 Inch | 214.325Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | BRG-UN2-300 |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Non-expansion |
Seals | Single Lip Contact |
Housing Material | Cast Iron |
Mounting Bolts | 3/4 Inch |
Housing Configuration | 1 Piece Solid |
