Specifications
| title | P2B517-SFXT-075MTT |
| price | $ 1,057.43 / each |

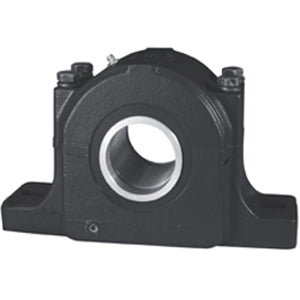

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 19.07 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 42 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 5.484 Inch | 139.294 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 10.5 Inch | 266.7 Millimeter |
| Bolt Spacing Minimum | 10.25 Inch | 260.35Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 10.75 Inch | 273.05Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22217K |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
