FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

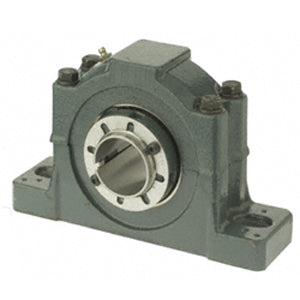

| title | P2B520-ISAF-307L |
| price | $ 1,359.84 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 29.782 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 65.6 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 4.16 Inch | 105.664 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.5 Inch | 317.5 Millimeter |
| Bolt Spacing Minimum | 11.81 Inch | 299.974Millimeter |
| Base to Center Height | 4.5 Inch | 114.3 Millimeter |
| Bolt Spacing Maximum | 13.13 Inch | 333.502Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-IP-307L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Metallic Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 2 Piece Split |
