Specifications
| title | P2B520-SFXT-308TT |
| price | $ 1,597.27 / each |

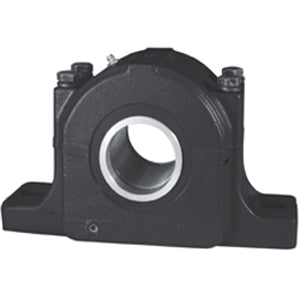

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 31.55 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 69.5 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Global Part Number GPN | 521297 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 6.219 Inch | 157.963 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.3 Inch | 312.4 Millimeter |
| Bolt Spacing Minimum | 11.875 Inch | 301.625Millimeter |
| Base to Center Height | 4.5 Inch | 114.3 Millimeter |
| Bolt Spacing Maximum | 12.625 Inch | 320.675Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22220K |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 2 Piece Split |
