FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
| title | P2U323 |
| price | $ 299.67 / each |

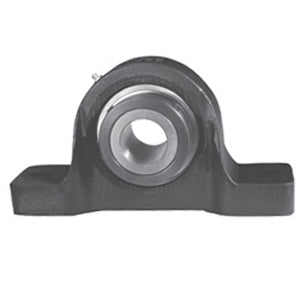

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 4.04 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 8.9 |
| Other Features | Single Row | Heavy Duty | Single Collar | High Base | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 245494 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.094 Inch | 53.18 Millimeter |
| Actual Bolt Center to Center | 8.3 Inch | 210Millimeter |
| Nominal Bolt Center to Center | 8.3 Inch | 210 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG323L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Steel Clad Clearance |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
