Specifications

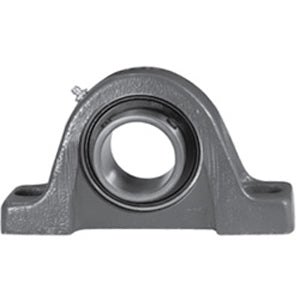

| title | P3S217EK75 |
| price | $ 118.49 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 2.49 |
| Other Features | Single Row | Standard Duty | Corrosion Resistant Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515965 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.344 Inch | 34.13 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.8 Inch | 121 Millimeter |
| Bolt Spacing Minimum | 4.125 Inch | 104.775Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 5.125 Inch | 130.175Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MB251-116-PA |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
