FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

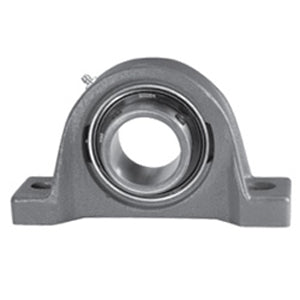

| title | P3S228E |
| price | $ 99.79 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 2.27 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 5 |
| Other Features | Single Row | Intermediate Duty | Standard Backing | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 516442 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.766 Inch | 44.85 Millimeter |
| Actual Bolt Center to Center | 5.6 Inch | 143Millimeter |
| Nominal Bolt Center to Center | 5.6 Inch | 142.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SG228EL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
