Specifications

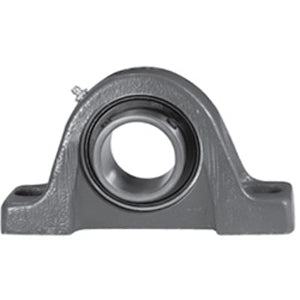

| title | P3S247EK75 |
| price | $ 399.13 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 16.73 |
| Other Features | Single Row | Standard Duty | Corrosion Resistant Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515948 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.266 Inch | 57.556 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 9 Inch | 229 Millimeter |
| Bolt Spacing Minimum | 8.125 Inch | 206.375Millimeter |
| Base to Center Height | 3.5 Inch | 88.9 Millimeter |
| Bolt Spacing Maximum | 10.125 Inch | 257.175Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MB252-1516-PA |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
