FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

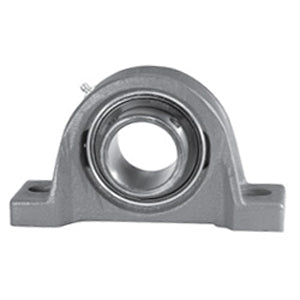

| title | P3U239H |
| price | $ 280.31 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 5.18 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 11.4 |
| Other Features | Single Row | Standard Duty | Standard Backing | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 245640 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.5 Inch | 63.5 Millimeter |
| Actual Bolt Center to Center | 7.5 Inch | 190Millimeter |
| Nominal Bolt Center to Center | 7.5 Inch | 190 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.688 Inch | 68.275 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG239HL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
