Specifications
| title | P3U244N |
| price | $ 466.99 / each |

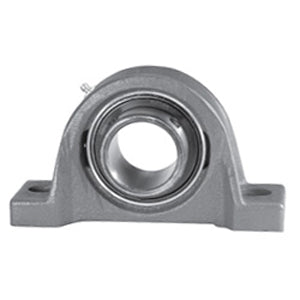

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 19.5 |
| Other Features | Single Row | Standard Duty | Standard Backing | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 245650 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Actual Bolt Center to Center | 8.9 Inch | 225.4Millimeter |
| Nominal Bolt Center to Center | 8.9 Inch | 226 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG244NL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
