Specifications

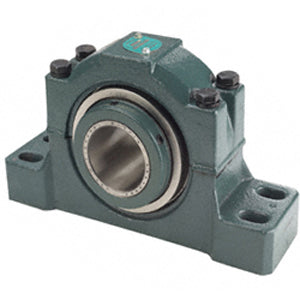

| title | P4B-DI-211R |
| price | $ 1,102.32 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 21.388 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 38 |
| Other Features | Double Row | Heavy Duty | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521262 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.5 Inch | 114.3 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 10.9 Inch | 276.9 Millimeter |
| Bolt Spacing Minimum | 9.875 Inch | 250.83Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 11.5 Inch | 292.1Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-DI-211R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
