Specifications

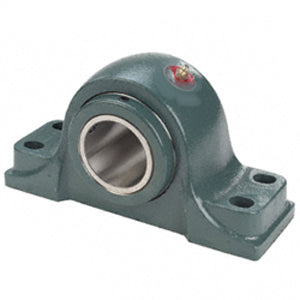

| title | P4B-E-400R |
| price | $ 1,502.85 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 31.33 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 69 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521209 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.25 Inch | 158.75 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.1 Inch | 308.5 Millimeter |
| Bolt Spacing Minimum | 12.25 Inch | 311.15Millimeter |
| Base to Center Height | 4.25 Inch | 107.95 Millimeter |
| Bolt Spacing Maximum | 12.75 Inch | 323.85Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
