Specifications
| title | P4B-E-700R |
| price | $ 7,889.95 / each |

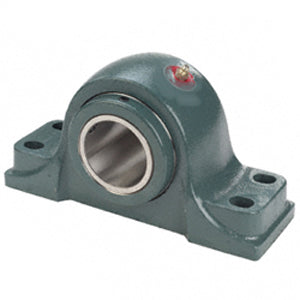

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 165.256 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 335 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521198 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 10.5 Inch | 266.7 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 22.3 Inch | 565.2 Millimeter |
| Bolt Spacing Minimum | 21.25 Inch | 539.75Millimeter |
| Base to Center Height | 7.5 Inch | 190.5 Millimeter |
| Bolt Spacing Maximum | 23.25 Inch | 590.55Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
