Specifications

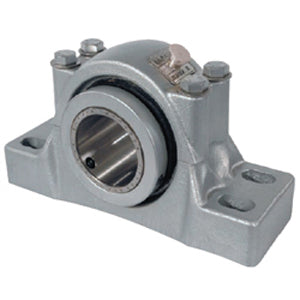

| title | P4B-EXL-208RE |
| price | $ 677.12 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | DODGE |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 29 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4 Inch | 101.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.9 Inch | 199.5 Millimeter |
| Bolt Spacing Minimum | 7.75 Inch | 196.85Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 8.25 Inch | 209.55Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-EXL-208R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
