Specifications
| title | P4B-EXL-407RE |
| price | $ 3,331.99 / each |

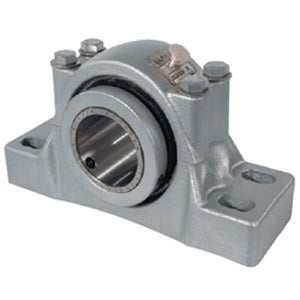

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 69.916 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 154 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.75 Inch | 171.45 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.8 Inch | 325.1 Millimeter |
| Bolt Spacing Minimum | 12 Inch | 304.8Millimeter |
| Base to Center Height | 4.75 Inch | 120.65 Millimeter |
| Bolt Spacing Maximum | 13.88 Inch | 352.552Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-EXL-407R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
