Specifications

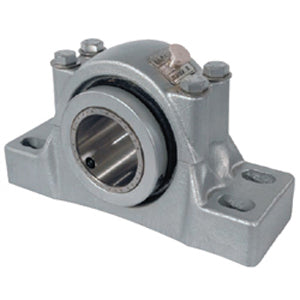

| title | P4B-EXL-415RE |
| price | $ 5,083.02 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | DODGE |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 192 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 7.25 Inch | 184.15 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 14.7 Inch | 373.3 Millimeter |
| Bolt Spacing Minimum | 13.5 Inch | 342.9Millimeter |
| Base to Center Height | 5.5 Inch | 139.7 Millimeter |
| Bolt Spacing Maximum | 15.88 Inch | 403.352Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-EXL-415R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
