Specifications
| title | P4B-S2-315LE |
| price | $ 1,663.01 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 25.878 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 57 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 521054 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.469 Inch | 113.513 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.5 Inch | 317.5 Millimeter |
| Bolt Spacing Minimum | 12.125 Inch | 307.975Millimeter |
| Base to Center Height | 4.25 Inch | 107.95 Millimeter |
| Bolt Spacing Maximum | 12.875 Inch | 327.025Millimeter |

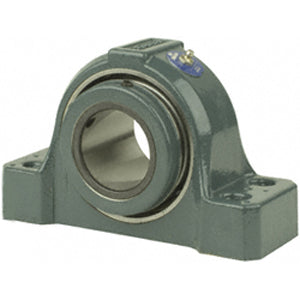

| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-S2-315L |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Metallic Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
