Specifications

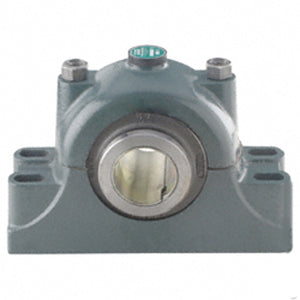

| title | P4B-SD-215 |
| price | $ 3,203.37 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 36.32 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 80 |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 521127 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.75 Inch | 146.05 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.8 Inch | 300 Millimeter |
| Bolt Spacing Minimum | 10.875 Inch | 276.225Millimeter |
| Base to Center Height | 4.75 Inch | 120.65 Millimeter |
| Bolt Spacing Maximum | 12.625 Inch | 320.675Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | DU-SD-215 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Dual Piston Ring Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
