Specifications

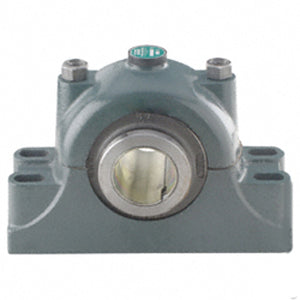

| title | P4B-SD-500 |
| price | $ 16,383.19 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 172.52 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 380 |
| Other Features | Double Row | Special Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 521100 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 10.5 Inch | 266.7 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 18.8 Inch | 477.5 Millimeter |
| Bolt Spacing Minimum | 17.75 Inch | 450.85Millimeter |
| Base to Center Height | 7.5 Inch | 190.5 Millimeter |
| Bolt Spacing Maximum | 19.75 Inch | 501.65Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | DU-SD-500 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Dual Piston Ring Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
