FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

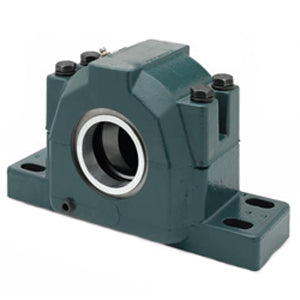

| title | P4B048-USAF-808TT |
| price | $ 11,840.59 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 226.342 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 412.2 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Global Part Number GPN | 521038 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 11.531 Inch | 292.887 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 23.8 Inch | 603.3 Millimeter |
| Bolt Spacing Minimum | 22.5 Inch | 571.5Millimeter |
| Base to Center Height | 8.25 Inch | 209.55 Millimeter |
| Bolt Spacing Maximum | 25 Inch | 635Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | BRG23048KC3 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/4 Inch |
| Housing Configuration | 2 Piece Split |
