Specifications
| title | P4B312-USAF-060MTT |
| price | $ 1,006.79 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 0.005 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 0.01 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Global Part Number GPN | 521003 |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 5.203 Inch | 132.156 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 9.1 Inch | 232 Millimeter |
| Bolt Spacing Minimum | 8.625 Inch | 219.075Millimeter |
| Base to Center Height | 3.252 Inch | 82.6 Millimeter |
| Bolt Spacing Maximum | 9.625 Inch | 244.475Millimeter |

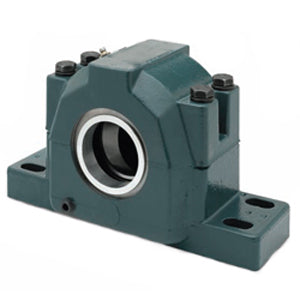

| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | BRG22312C3 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 2 Piece Split |
