FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

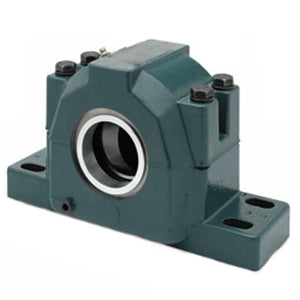

| title | P4B320-USAF-100MTT |
| price | $ 2,180.35 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 50.85 |
| Inch - Metric | Metric |
| Brand | DODGE |
| Weight / LBS | 112 |
| Other Features | Double Row | Both End Open | Corrosion Resistant |
| Relubricatable | Yes |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 8.05 Inch | 204.47 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.9 Inch | 353.1 Millimeter |
| Bolt Spacing Minimum | 13.25 Inch | 336.55Millimeter |
| Base to Center Height | 5.25 Inch | 133.35 Millimeter |
| Bolt Spacing Maximum | 14.5 Inch | 368.3Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | BRG22320C3 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
