Specifications

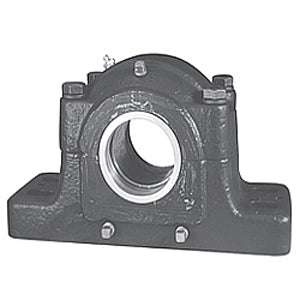

| title | P4B518-SFXT-303TT |
| price | $ 1,303.28 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 16.783 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 52.5 |
| Other Features | Double Row | Open End | Corrosion Resistant |
| Relubricatable | Yes |
| Global Part Number GPN | 520929 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 5.953 Inch | 151.206 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11 Inch | 280 Millimeter |
| Bolt Spacing Minimum | 10.5 Inch | 266.7Millimeter |
| Base to Center Height | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Maximum | 11.5 Inch | 292.1Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22218K |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Tect |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
