Specifications

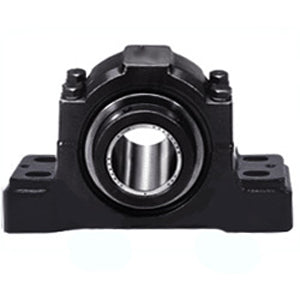

| title | P4B520-TAF-307R |
| price | $ 1,326.38 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 34.05 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 71 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 520917 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5 Inch | 127 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.1 Inch | 308.5 Millimeter |
| Bolt Spacing Minimum | 11.625 Inch | 295.275Millimeter |
| Base to Center Height | 4.5 Inch | 114.3 Millimeter |
| Bolt Spacing Maximum | 13.125 Inch | 333.375Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-TAF-307R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
