Specifications
| title | P4B528-TAF-415RE |
| price | $ 3,067.19 / each |

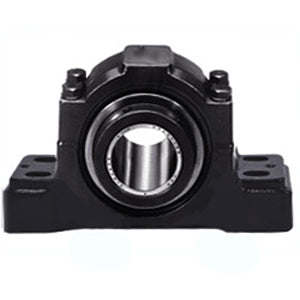

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 87.168 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 180 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 520853 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 7.25 Inch | 184.15 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 16.6 Inch | 420.7 Millimeter |
| Bolt Spacing Minimum | 15.625 Inch | 396.875Millimeter |
| Base to Center Height | 6 Inch | 152.4 Millimeter |
| Bolt Spacing Maximum | 17.375 Inch | 441.325Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-TAF-415R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
