Specifications
title | P4B532-TAF-507R |
price | $ 4,749.68 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
Weight / kgm | 136.2 |
Inch - Metric | Inch |
Brand | DODGE |
Weight / LBS | 300 |
Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 520831 |
Mounting Method | Concentric Collar |
Length Thru Bore | 9 Inch | 228.6 Millimeter |
Actual Bolt Center to Center | 0 Inch | 0Millimeter |
Nominal Bolt Center to Center | 18.4 Inch | 467.4 Millimeter |
Bolt Spacing Minimum | 17.625 Inch | 447.675Millimeter |
Base to Center Height | 6.688 Inch | 169.875 Millimeter |
Bolt Spacing Maximum | 19.25 Inch | 488.95Millimeter |

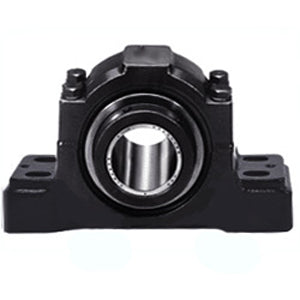

Housing Style | 4 Bolt Pillow Block |
Insert Part Number | S1U-TAF-507R |
Number of Mounting Holes | 4 |
Expansion / Non-expansion | Non-expansion |
Seals | Land Riding Rubbing Single Lip Contact |
Housing Material | Cast Iron |
Mounting Bolts | 1 Inch |
Housing Configuration | 2 Piece Split |
