Specifications

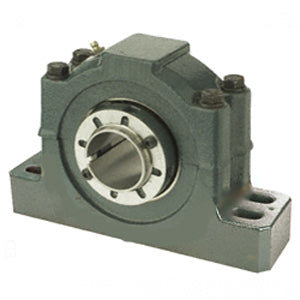

| title | P4B534-ISAF-515LE |
| price | $ 5,747.53 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 147.55 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 325 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 520825 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 7.078 Inch | 179.781 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 20.5 Inch | 520.7 Millimeter |
| Bolt Spacing Minimum | 19.375 Inch | 492.125Millimeter |
| Base to Center Height | 7.063 Inch | 179.4 Millimeter |
| Bolt Spacing Maximum | 21.625 Inch | 549.275Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-IP-515L |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Metallic Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
