FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

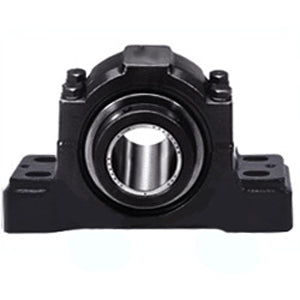

| title | P4B534-TAF-600R |
| price | $ 6,169.13 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | DODGE |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 300 |
| Other Features | Double Row | Optional E-Tect Seal | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 493746 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 9 Inch | 228.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 20.3 Inch | 515.6 Millimeter |
| Bolt Spacing Minimum | 19 Inch | 482.6Millimeter |
| Base to Center Height | 7.063 Inch | 179.4 Millimeter |
| Bolt Spacing Maximum | 21.625 Inch | 549.275Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | S1U-TAF-600R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Land Riding Rubbing Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
