Specifications

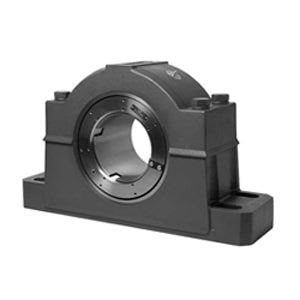

| title | P4B536-ISAF-607R HYD |
| price | $ 10,562.65 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 376.82 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 830 |
| Other Features | Double Row | Has Flinger | Hydraulic Mounting |
| Relubricatable | Yes |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 9.6 Inch | 243.84 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 22.3 Inch | 565.2 Millimeter |
| Bolt Spacing Minimum | 20.875 Inch | 530.225Millimeter |
| Base to Center Height | 7.5 Inch | 190.5 Millimeter |
| Bolt Spacing Maximum | 23.625 Inch | 600.075Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-IP-607R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
