Specifications

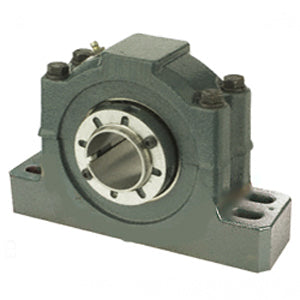

| title | P4B538-ISAF-615R |
| price | $ 7,462.76 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 149.82 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 330 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 520796 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 7.391 Inch | 187.731 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 23 Inch | 584.2 Millimeter |
| Bolt Spacing Minimum | 21.625 Inch | 549.275Millimeter |
| Base to Center Height | 7.875 Inch | 200.025 Millimeter |
| Bolt Spacing Maximum | 24.375 Inch | 619.125Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-IP-615R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/4 Inch |
| Housing Configuration | 2 Piece Split |
